XC6VSX315T-2FFG1759C 1600MHz Programmable IC Chips

Ask Lasest Price
Brand Name :	Xilinx Inc.
Model Number :	XC6VSX315T-2FFG1759C
Certification :	Lead free / RoHS Compliant
Price :	USD 4000~5500 pcs
Payment Terms :	T/T, Western Union, Paypal, Trade Assurance, Credit Card
Supply Ability :	108 pcs
Delivery Time :	3-5 Day

Add to Cart

Product Details
Company Profile

XC6VSX315T-2FFG1759C 1600MHz Programmable IC Chips

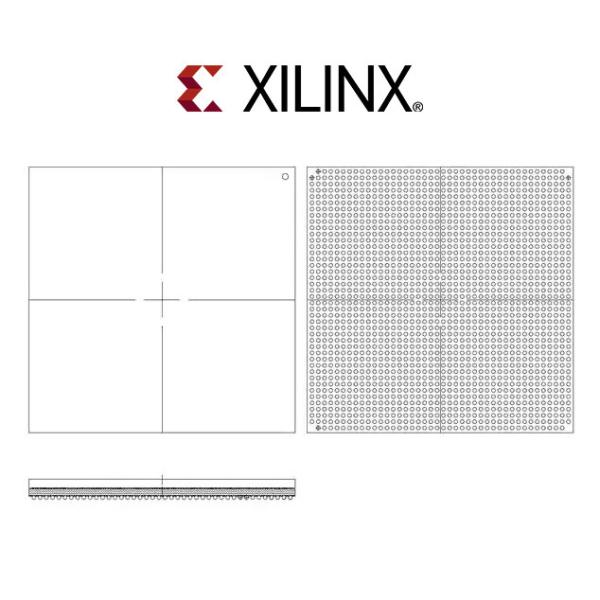

XC6VSX315T-2FFG1759C Xilinx FPGA Chip FCBGA-1759 Virtex-6

Product Attribute	Attribute Value
Manufacturer:	Xilinx
Product Category:	FPGA - Field Programmable Gate Array
Product:	Virtex-6
Number of Logic Elements:	314880
Number of I/Os:	720 I/O
Operating Supply Voltage:	1 V
Minimum Operating Temperature:	0 C
Maximum Operating Temperature:	+ 85 C
Mounting Style:	SMD/SMT
Package / Case:	FCBGA-1759
Data Rate:	6.6 Gb/s
Series:	XC6VSX315T
Brand:	Xilinx
Distributed RAM:	5090 kbit
Embedded Block RAM - EBR:	25344 kbit
Maximum Operating Frequency:	1600 MHz
Moisture Sensitive:	Yes
Number of Transceivers:	24 Transceiver
Product Type:	FPGA - Field Programmable Gate Array
Factory Pack Quantity:	1
Subcategory:	Programmable Logic ICs
Tradename:	Virtex

Summary of Virtex-6 FPGA Features

• High-performance parallel SelectIO™ technology
• 1.2 to 2.5V I/O operation
• Source-synchronous interfacing using ChipSync™ technology
• Digitally controlled impedance (DCI) active termination
• Flexible fine-grained I/O banking
• High-speed memory interface support with integrated write-leveling capability
• Advanced DSP48E1 slices
• 25 x 18, two's complement multiplier/accumulator
• Optional pipelining
• New optional pre-adder to assist filtering applications
• Optional bitwise logic functionality
• Dedicated cascade connections
• Flexible configuration options
• SPI and Parallel Flash interface
• Multi-bitstream support with dedicated fallback reconfiguration logic
• Automatic bus width detection
• System Monitor capability on all devices
• On-chip/off-chip thermal and supply voltage monitoring
• 64-bit (or two 32-bit) distributed LUT RAM option per 6-input LUT
• SRL32/dual SRL16 with registered outputs option
• Powerful mixed-mode clock managers (MMCM)
• 36-Kb block RAM/FIFOs
• Dual-port RAM blocks
• Programmable
- Dual-port widths up to 36 bits
- Simple dual-port widths up to 72 bits
• Enhanced programmable FIFO logic
• Built-in optional error-correction circuitry
• Optionally use each block as two independent 18 Kb blocks

Product Tags:
