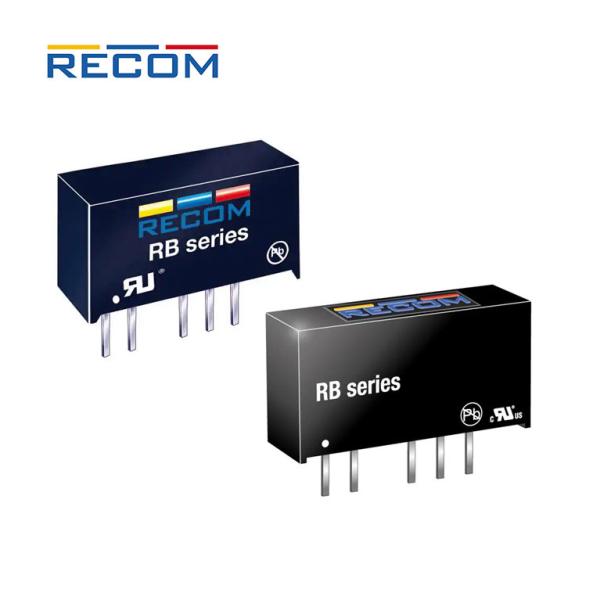

RB-2409S 111mA 9V RECOM DC DC Converter

Ask Lasest Price
Brand Name :	RECOM Power
Model Number :	RB-2409S/HP
Certification :	Lead free / RoHS Compliant
Price :	USD 4.5-5.1 pcs
Payment Terms :	T/T, Western Union, Paypal, Trade Assurance, Credit Card
Supply Ability :	2500 pcs
Delivery Time :	3-5 Day

Add to Cart

Product Details
Company Profile

RB-2409S 111mA 9V RECOM DC DC Converter

RB-2409S/HP RECOM DC DC Converters 9V 111mA 21.6V - 26.4V Input

Product Attribute	Attribute Value
Manufacturer:	RECOM
Product Category:	Isolated DC/DC Converters
Number of Outputs:	1 Output
Output Power:	1 W
Input Voltage, Nominal:	24 V
Input Voltage, Min:	21.6 V
Input Voltage, Max:	26.4 V
Output Voltage-Channel 1:	9 V
Output Current-Channel 1:	112 mA
Isolation Voltage:	2 kV
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Mounting Style:	Through Hole
Package / Case:	SIP-7
Length:	19.56 mm
Width:	6.1 mm
Height:	10.16 mm
Product:	Isolated
Series:	RB
Input Voltage:	21.6 V to 26.4 V
Packaging:	Tube
Brand:	RECOM Power
Compliance:	CAN/CSA; EAC; IEC; REACH; RoHS; UL
Efficiency:	78%
Output Voltage V1, Nominal:	9 V
Product Type:	Isolated DC-DC Converters
Factory Pack Quantity:	25
Subcategory:	DC-DC Converter
Tradename:	Econoline
Part # Aliases:	10005328
Unit Weight:	0.077603 oz

Features:

• Low cost 1W converter
• Power sharing on dual output versions
• 1kVDC/1s or 2kVDC/1s isolation option
• Optional continuous short circuit protection
• Efficiency up to 85%
• UL94V-0 package material

The RB series DC/DC converter has been designed for isolating or converting DC power rails in
general purpose applications. Although low cost, it does not compromise on features and offers
1KVDC/1s or 2kVDC/1s isolation, a –40°C to +85°C operating temperature range and optional
continuous short circuit protection.
