RGZ-1205D 200mA Isolated 5v DC DC Converter

    Buy cheap RGZ-1205D 200mA Isolated 5v DC DC Converter from wholesalers

    Buy cheap RGZ-1205D 200mA Isolated 5v DC DC Converter from wholesalers
    • Buy cheap RGZ-1205D 200mA Isolated 5v DC DC Converter from wholesalers

    RGZ-1205D 200mA Isolated 5v DC DC Converter

    Ask Lasest Price
    Brand Name : RECOM Power
    Model Number : RGZ-1205D
    Certification : Lead free / RoHS Compliant
    Price : USD 7.3-8.9 pcs
    Payment Terms : T/T, Western Union, Paypal, Trade Assurance, Credit Card
    Supply Ability : 1200 pcs
    Delivery Time : 3-5 Day
    • Product Details
    • Company Profile

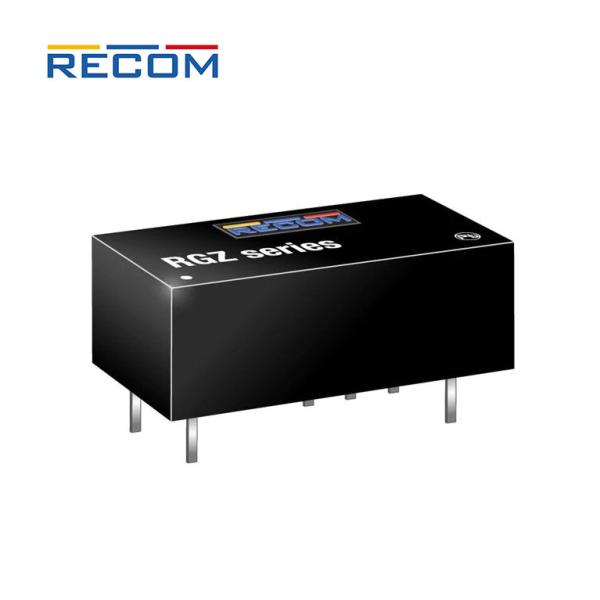

    RGZ-1205D 200mA Isolated 5v DC DC Converter

    RGZ-1205D Isolated DC DC Converter 5V 200mA 10.8V-13.2V Input


    Product AttributeAttribute Value
    RECOM
    Isolated DC/DC Converters
    RoHS:Details
    2 Output
    2 W
    12 V
    10.8 V
    13.2 V
    5 V
    200 mA
    - 5 V
    200 mA
    3 kV
    - 40 C
    + 90 C
    Through Hole
    DIP-14
    19.81 mm
    9.91 mm
    7.11 mm
    Industrial
    Isolated
    RGZ
    Input Voltage:10.8 V to 13.2 V
    Packaging:Tube
    Brand:RECOM Power
    Compliance:EAC; REACH; RoHS
    Efficiency:82%
    Output Voltage V1, Nominal:- 5 V
    Output Voltage V2, Nominal:5 V
    Product Type:Isolated DC-DC Converters
    Factory Pack Quantity:24
    Subcategory:DC-DC Converter
    Tradename:Econoline
    Part # Aliases:10011498
    Unit Weight:0.098767 oz

    Features


    • 2W single and dual outputs in DIP14
    • 3kVDC/1s or 4kVDC/1s isolation
    • Optional continuous short circuit protection
    • UL94V-0 package material
    • Efficiency up to 85%
    • Suitable for IGBT applications

    The RJZ and RGZ series converters are available in DIP14 packages, so can be used for applications
    where component height is restricted. The wide selection of input voltage and output voltage
    options plus an I/O-Isolation of 3kVDC or 4kVDC as standard makes these converters suitable for many
    industrial, medical and IGBT applications.
